Y 15°
λ 45°
z=3
ø
3÷20
HM MG10
| aplikace | doporučené | použitelné |
|---|---|---|
| Alu | Plast | Cu |
| <1000 N/mm2 | <45 HRC | Nerez |
| hrubování | dokončování |
|---|---|

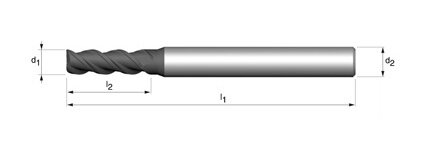

| ød1 h10 | l2 | l1 | ød2 h6 | z | Obj. číslo | € | Kč |
|---|---|---|---|---|---|---|---|
| 3 | 8 | 57 | 6 | 3 | 113110Z.030 | 21,77 | 529 |
| 4 | 11 | 57 | 6 | 3 | 113110Z.040 | 22,22 | 540 |
| 5 | 13 | 57 | 6 | 3 | 113110Z.050 | 23,70 | 576 |
| 6 | 13 | 57 | 6 | 3 | 113110Z.060 | 24,15 | 587 |
| 8 | 19 | 63 | 8 | 3 | 113110Z.080 | 32,42 | 788 |
| 10 | 22 | 72 | 10 | 3 | 113110Z.100 | 44,40 | 1 079 |
| 12 | 26 | 83 | 12 | 3 | 113110Z.120 | 61,07 | 1 484 |
| 14 | 26 | 83 | 14 | 3 | 113110Z.140 | 77,40 | 1 881 |
| 16 | 32 | 92 | 16 | 3 | 113110Z.160 | 109,34 | 2 657 |
| 18 | 32 | 92 | 18 | 3 | 113110Z.180 | 133,08 | 3 234 |
| 20 | 38 | 104 | 20 | 3 | 113110Z.200 | 175,63 | 4 268 |
| Skladem, na objednávku 24h | |||||||
příklad objednávky: 113110Z.040 - 5 ks
